Sonoscape E1
Compact Elegance
The Sonoscape E1 is a lightweight, portable black-and-white ultrasound system designed for essential diagnostic needs. Equipped with PW Doppler, it delivers clear, reliable imaging for routine examinations at an accessible price point.
Sonoscape E1
Compact Elegance
The Sonoscape E1 is a lightweight, portable black-and-white ultrasound system designed for essential diagnostic needs. Equipped with PW Doppler, it delivers clear, reliable imaging for routine examinations at an accessible price point.
Compatible probes
Micro-Convex Probe - High Frequency
Micro-Convex Probe - High Frequency
C613
- •Application: Abdominal, Cardiac, Urology, Pediatrics
- •Frequency Range: 4-13 MHz
- •Center Frequency: 6.0 MHz
- •Field of View: 90°
- •Biopsy Guide: Support
Linear array
Linear array
L741
- •Application: Vascular, Small Parts, Musculoskeletal, Nerve
- •Frequency Range: 4-16 MHz
- •Center Frequency: 7.5 MHz
- •Field of View: 46mm
- •Biopsy Guide: Support
Endocavity / Transvaginal Probe
Endocavity / Transvaginal Probe
6V1
-
•Application: Gynecology, Obstetrics, Urology
- •Frequency Range: 3-15 MHz
- •Center Frequency: 6.0 MHz
- •Field of View: 135°
- •Biopsy Guide: Support
Hockey Stick Probe
Hockey Stick Probe
10I2 Transducer
- • Application: intra-operative
- • Frequency range: 4 – 16 MHz
- • Center frequency: 7.5 MHz
- • Field of view: 25mm
Micro-Convex probe
Micro-Convex probe
- C322
- • Application: abdominal puncture, urology
- • Frequency range: 2 – 7 MHz
- • Center frequency: 3.5 MHz
- • Field of view: 68°
- • Biopsy guide: support
Convex Probe
Convex Probe
C361
- •Application: Abdominal, Obstetrics, Gynecology
- •Frequency Range: 2.0-6.0 MHz
- •Center Frequency: 3.5 MHz
- •Field of View: 72°
- •Biopsy Guide: Support
Compatible optional accessories
Black and white thermal ultrasound printer
Black and white thermal ultrasound printer
Sony UP-X898MD – A compact A6 black-and-white ultrasound printer delivering fast, high-resolution images with USB storage. Each roll yields about 250 prints on average. Compatible paper options include High-Density, High Gloss and Standard
Sonoscape Fitted Travel Case
Sonoscape Fitted Travel Case
- • Protective design: durable, high-density fabric with reinforced panels
- • Tailored fit: interior shaped to hold the E1 system, probes, and power supply securely
- • Easy transport: roller wheels, retractable handle.
Local "made to fit" trolley
Local "made to fit" trolley
Locally crafted cart, this sturdy, wheeled cart features a gel holder, three transducer cradles, and spacious shelves for a printer and consumables, ensuring organized, mobile ultrasound workflow.

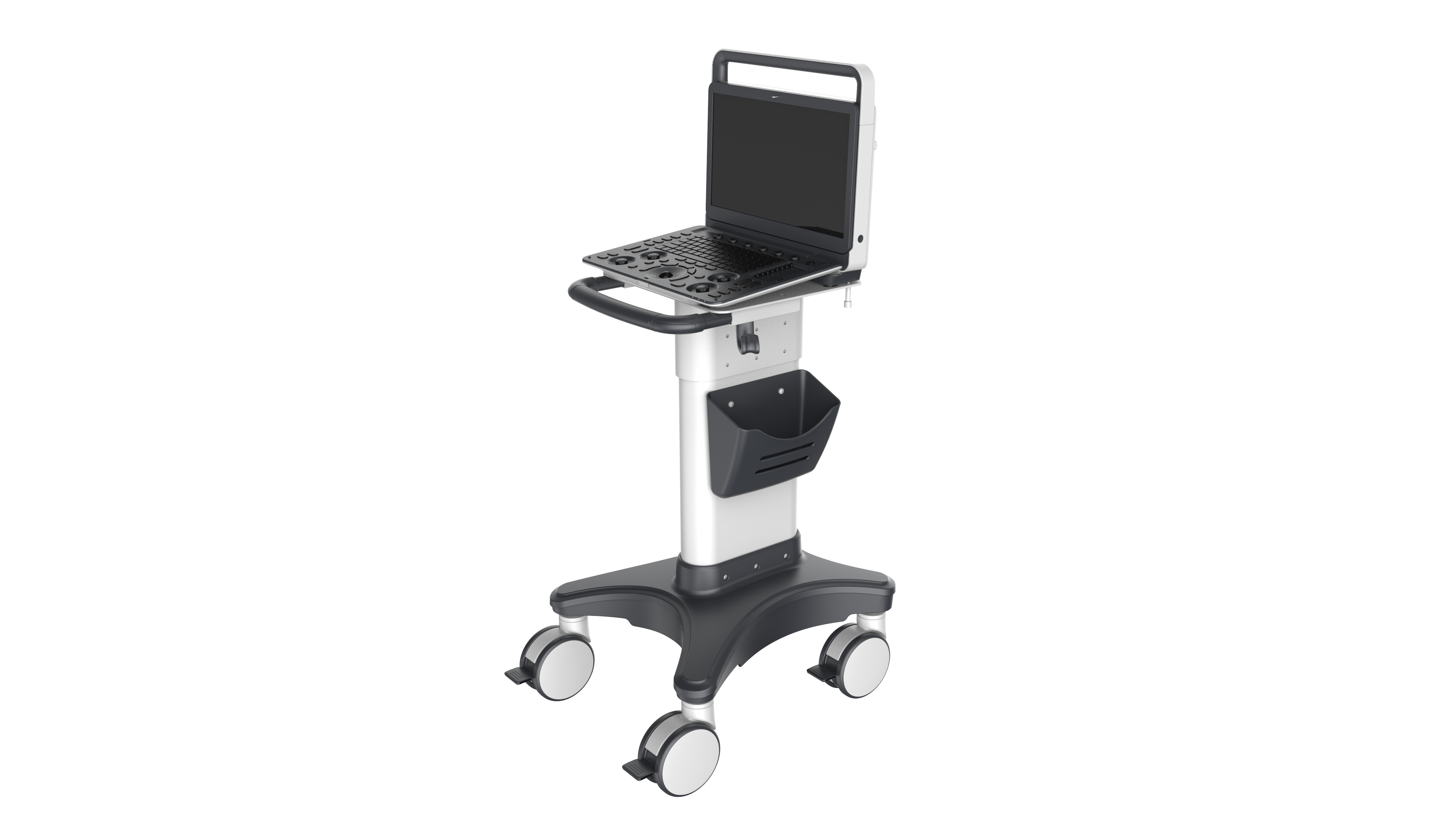

Sonoscape Imported Trolley
Sonoscape Imported Trolley
SonoScape E-Series Trolley An optional, height-adjustable trolley with locking castors, probe holders, and accessory shelves, designed to transform portable E-series systems into mobile, ergonomic workstations for clinical flexibility.
