Vinno A5
Confidence in Hand
The Vinno A5 offers essential ultrasound functionality in a lightweight, portable design. Compact and easy to operate, it supports basic imaging needs with clarity and efficiency. An ideal entry point for practices and clinics, the A5 provides reliable pe
Vinno A5
Confidence in Hand
The Vinno A5 offers essential ultrasound functionality in a lightweight, portable design. Compact and easy to operate, it supports basic imaging needs with clarity and efficiency. An ideal entry point for practices and clinics, the A5 provides reliable pe
Compatible probes
Convex Probe
Convex Probe
A2-5C
- • Field of view: 59 degree
- • Convex radius: 60mm
- • Application: abdomen, ob/gyn, urology, pediatric
- • Center frequency: 3.2 MHz
- • B-mode Frequency range: 2.0 -6.5MHz
- • Physical footprint: 72mm x 27mm
- •Reusable biopsy guide available
Convex Probe - 3D/4D Volume
Convex Probe - 3D/4D Volume
A3-6D
- • Field of view: 70 degree
- • Convex radius: 40mm
- • Application: abdomen, ob/gyn, urology
- • Center frequency: 4.0 MHz
- • B-mode Frequency range: 3.0 – 6.0MHz
- • Physical footprint: 82mm×53m
Endocavity / Transvaginal Probe
Endocavity / Transvaginal Probe
A4-9E
- • Field of view: 156 degree
- • Convex radius: 10mm
- • Application: ob/gyn, urology
- • Center frequency: 3.2MHz
- • B-mode Frequency range: 5.0-11MHz
- • Physical footprint: 21.0mm (lens) x 19.0mm(lens)
- • Reusable biopsy guide available
Linear Probe - Wideband
Linear Probe - Wideband
A4-12L
- • Fine pitch, high resolution
- • Applications: vascular, small parts, msk, nerve
- • Aperture size: 38.4mm
- • Center frequency: 7.5MHz
- • B-mode Frequency range: 6-16MHz
- • Physical footprint: 50mm×18.5mm
Cardiac Probe - Phased Array
Cardiac Probe - Phased Array
A1-4P - 64 Element
- • Application: cardiac, abdomen,
- • Aperture size: 17.92mm
- • Field of view: 90 degree
- • Center frequency: 2.5MHz
- • B-mode Frequency range: 2.0-5.0Mhz
- • Physical footprint: 34.5mm×28.5mm
Micro-Convex Probe
Micro-Convex Probe
A4-9M
- • Field of view: 138 degree
- • Convex radius: 12mm
- • Application: pediatric, abdomen, cardiac
- • Center frequency: 7.0MHz
- • B-mode Frequency range: 5.0- 11.0MHz
- • Physical footprint: 34mm × 29mm
Compatible optional accessories
Vinno Fitted Travel Case
Vinno Fitted Travel Case
Vinno Fitted Travel Case

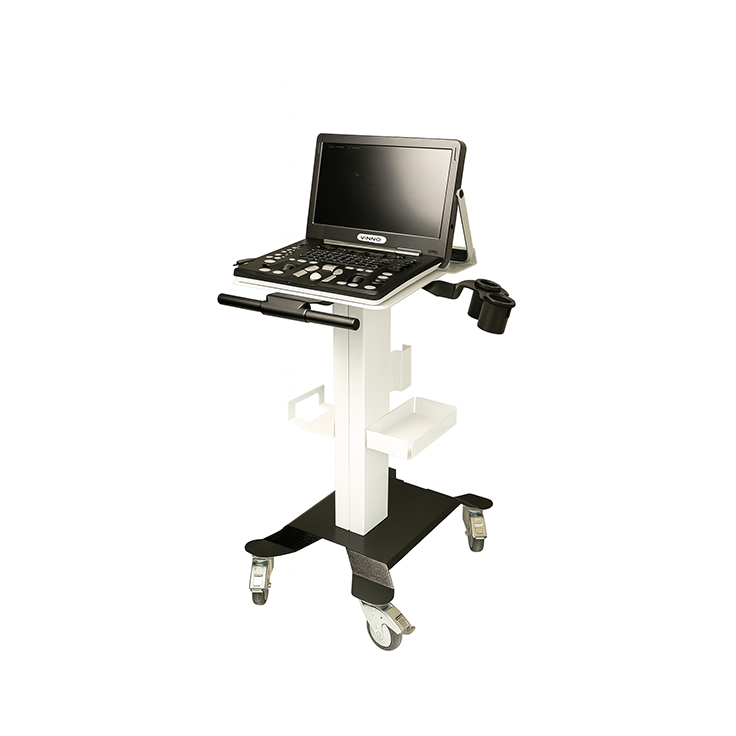

Local "Made to fit" trolley
Local "Made to fit" trolley
Locally crafted cart, this sturdy, wheeled cart features a gel holder, three transducer cradles, and spacious shelves for a printer and consumables, ensuring organized, mobile ultrasound workflow.
Black and white thermal ultrasound printer
Black and white thermal ultrasound printer
Sony UP-X898MD – A compact A6 black-and-white ultrasound printer delivering fast, high-resolution images with USB storage. Each roll yields about 250 prints on average. Compatible paper options include High-Density, High-Gloss, and Standard thermal media.
