Vinno 5
Sharper. Smarter. Clearer
The V5 builds on the A5 with expanded features and improved imaging performance. Compact and mobile, it supports a wide range of general clinical applications with consistent clarity.
Vinno 5
Sharper. Smarter. Clearer
The V5 builds on the A5 with expanded features and improved imaging performance. Compact and mobile, it supports a wide range of general clinical applications with consistent clarity.
Compatible probes
Convex Probe
Convex Probe
F2-5C
- • Field of view: 59 degree
- • Convex radius: 60mm
- • Application: abdomen, ob/gyn, urology, pediatric
- • Center frequency: 3.2 MHz
- • B-mode Frequency range: 2.0 -6.5MHz
- • Physical footprint: 72mm x 27mm
- •Reusable biopsy guide available
Convex Probe - 3D/4D Volume
Convex Probe - 3D/4D Volume
D3-6C - 128 Element
- Field of view: 70 degree
- • Convex radius: 40mm
- • Application: abdomen, ob/gyn, urology
- • Center frequency: 4.0 MHz
- • B-mode Frequency range: 3.0 – 6.0MHz
- • Physical footprint: 82mm×53Mm
Micro-Convex Probe
Micro-Convex Probe
G4-9M - 128 Element
- • Field of view: 138 degree
- • Convex radius: 12mm
- • Application: pediatric, abdomen, cardiac
- • Center frequency: 7.0MHz
- • B-mode Frequency range: 5.0- 11.0MHz
- • Physical footprint: 34mm × 29mm
Cardiac Probe - Phased Array
Cardiac Probe - Phased Array
G1-4P - 64 Element
- • Application: cardiac, abdomen,
- • Aperture size: 17.92mm
- • Field of view: 90 degree
- • Center frequency: 2.5MHz
- • B-mode Frequency range: 2.0-5.0Mhz
- • Physical footprint: 34.5mm×28.5mm
Linear Probe
Linear Probe
F4-12L - 128 Element
- • Fine pitch, high resolution
- • Applications: vascular, small parts, msk, nerve
- • Aperture size: 38.4mm
- • Center frequency: 7.5MHz
- • B-mode Frequency range: 6-16MHz
- • Physical footprint: 50mm×18.5mm
Endocavity / Transvaginal Probe
Endocavity / Transvaginal Probe
F4-9E - 128 Element
- • Field of view: 138 degree
- • Convex radius: 11.5mm
- • Application: ob/gyn, urology
- • Center frequency: 6.9MHz
- • B-mode Frequency range: 5 – 11MHz
- • Physical footprint: 24.0mm x 18.8mm
- • Reusable biopsy guide available
Cardiac Probe - Paediatric
Cardiac Probe - Paediatric
G3-10P
- • Application: Paediatric cardiology, abdomen,
- • Aperture size: 10.24 mm
- • Field of view: 90 degree
- • Center frequency: 4.7MHz
- • B-mode Frequency range: 3.0-10.0Mhz
- • Physical footprint: 33mm×33mm
Compatible optional accessories
Black and white thermal ultrasound printer
Black and white thermal ultrasound printer
Sony UP-X898MD – A compact A6 black-and-white ultrasound printer delivering fast, high-resolution images with USB storage. Each roll yields about 250 prints on average. Compatible paper options include High-Density, High-Gloss, and Standard thermal media.

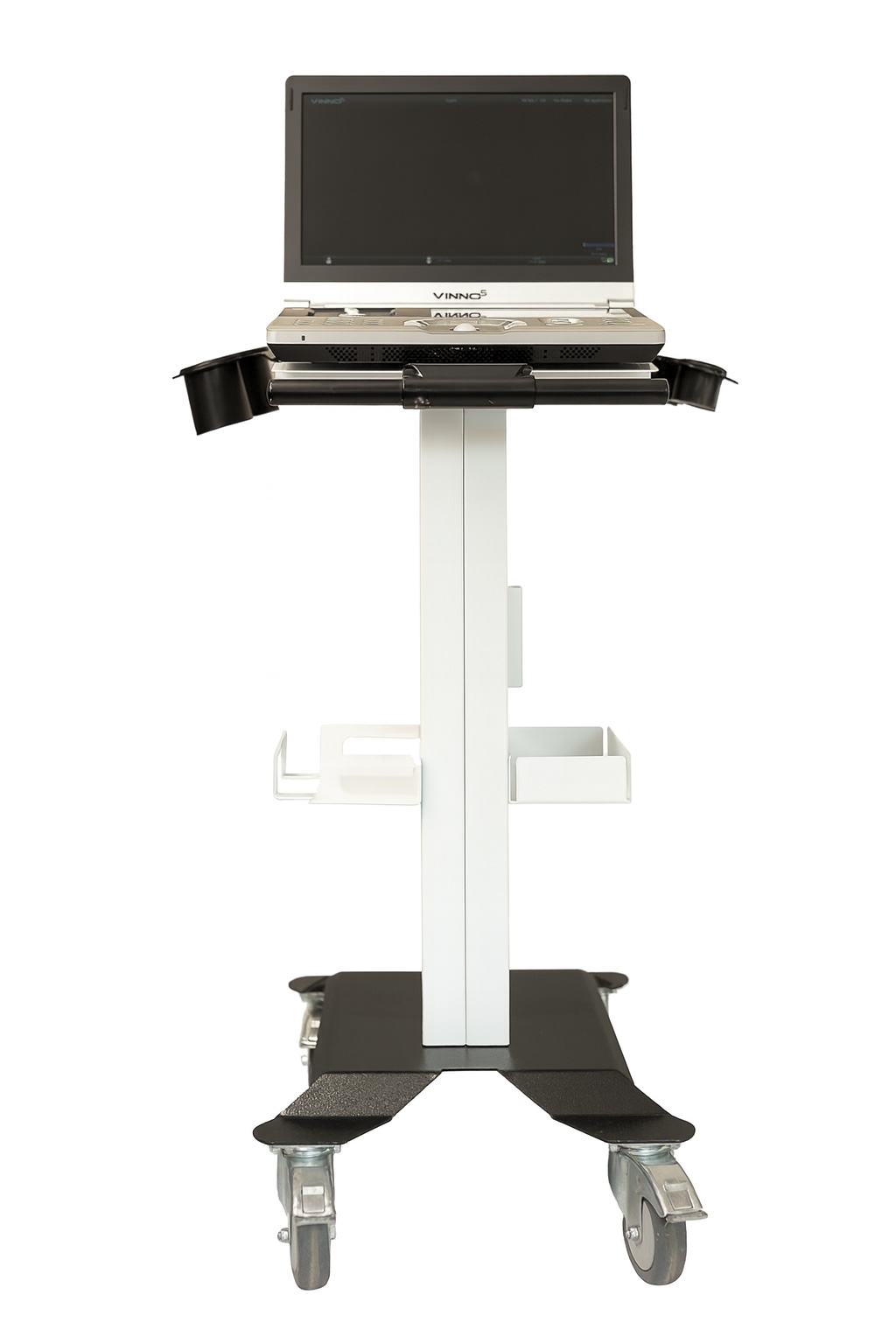

Locally Manufactured "made to fit" cart / trolley
Locally Manufactured "made to fit" cart / trolley
Locally crafted cart, this sturdy, wheeled cart features a gel holder, three transducer cradles, and spacious shelves for a printer and consumables, ensuring organized, mobile ultrasound workflow.

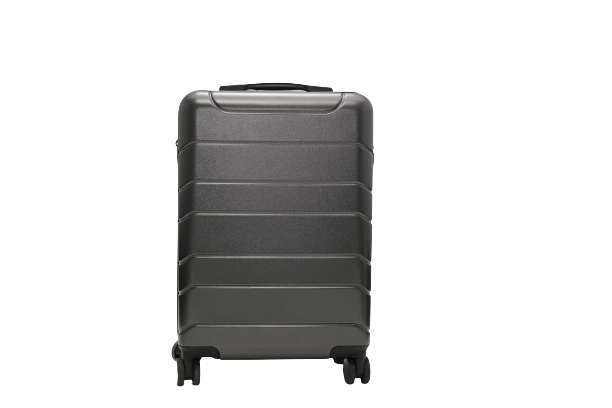

Vinno Fitted Travel Case
Vinno Fitted Travel Case
Fitted Travel Case for Vinno V5

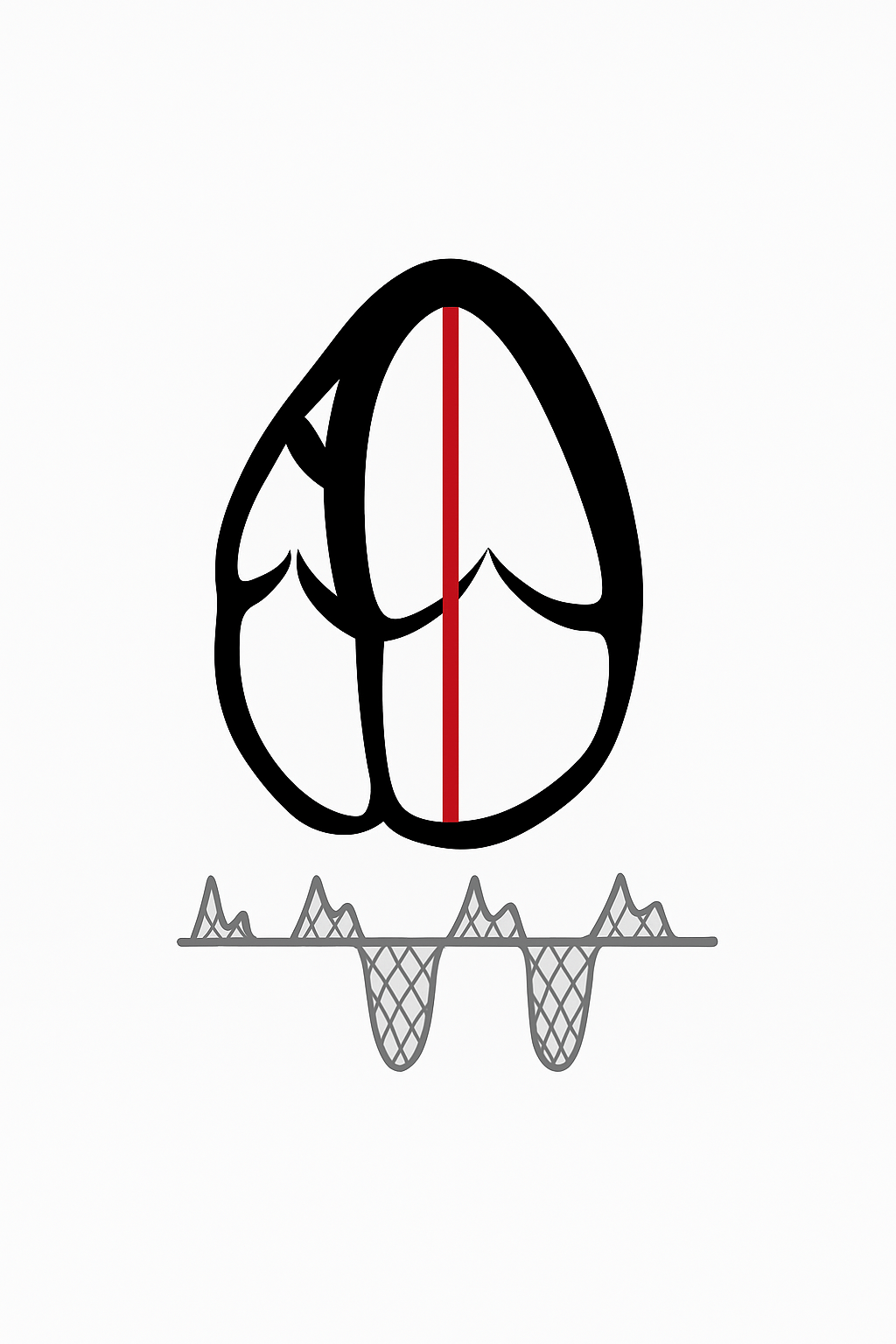

Continuous Wave Doppler
Continuous Wave Doppler
Continuous-Wave Doppler enables measurement of high-velocity blood flow without aliasing. It provides clear spectral traces in vascular and cardiac exams, especially where flow speeds exceed the limits of PW Doppler.
Bluetooth adapter
Bluetooth adapter
VINNO Bluetooth Adapter – This optional dongle lets VINNO systems wirelessly transmit images to paired devices via Bluetooth. Once plugged in and paired, users can send one or more images directly to mobile devices or other Bluetooth systems
Basic Vinno Cart / Trolley
Basic Vinno Cart / Trolley
Basic Vinno Cart / Trolley for the D5 Vet
