Vinno 10
Performance Redefined
The V10 is Vinno’s most advanced portable ultrasound, delivering top imaging performance in a compact, mobile design. Equipped with a powerful imaging engine and a wide range of clinical applications, it ensures consistent diagnostic confidence
Vinno 10
Performance Redefined
The V10 is Vinno’s most advanced portable ultrasound, delivering top imaging performance in a compact, mobile design. Equipped with a powerful imaging engine and a wide range of clinical applications, it ensures consistent diagnostic confidence
Compatible probes
Cardiac Probe - Single Crystal
Cardiac Probe - Single Crystal
S1-6P - 96 Element
- • Single Crystal technology
- • Applications: cardiac, abdomen
- • Aperture size: 15.36mm
- • Field of view: 90 degree
- • Center frequency: 3.2MHz
- • B-mode Frequency range: 2.0-6.0Mhz
- • Physical footprint: 34.2mm x 28.7mm
Vinno Hockey Stick Probe
Vinno Hockey Stick Probe
I7-18L
- • Fine pitch, high resolution
- • Application: msk, nerve, peripheral vascular, small parts
- • Aperture size: 25.6mm
- • Center frequency: 9.5MHz • B-mode Frequency range: 7.3-18.0MHz
- • Physical footprint: 31.7mm x 15mm
Endocavity Transducer - Straight Handle - 192 Elements
Endocavity Transducer - Straight Handle - 192 Elements
X4-9E - 192 Element
- • Field of View: 180°
- • Convex Radius: 8.8 mm
- • Application: OB/GYN, Urology
- • Center Frequency: 3.2 MHz
- • B-mode Frequency Range: 5.0–11 MHz
- • Physical Footprint: 19.15 mm (lens) × 17.8 mm (lens)
Biplane Probe Linear and Convex
Biplane Probe Linear and Convex
BP4-9L
- • Application: gyn, urology
- • Center frequency: 7.0 MHz
- • Transducer elements:128
- • 2D Frequency range: 6.0-12.0MHz
- • Pulsed wave Doppler, color Doppler, power Doppler, harmonic, B-mode
- Linear and convex
- 8mm / 6 - 12 MHz

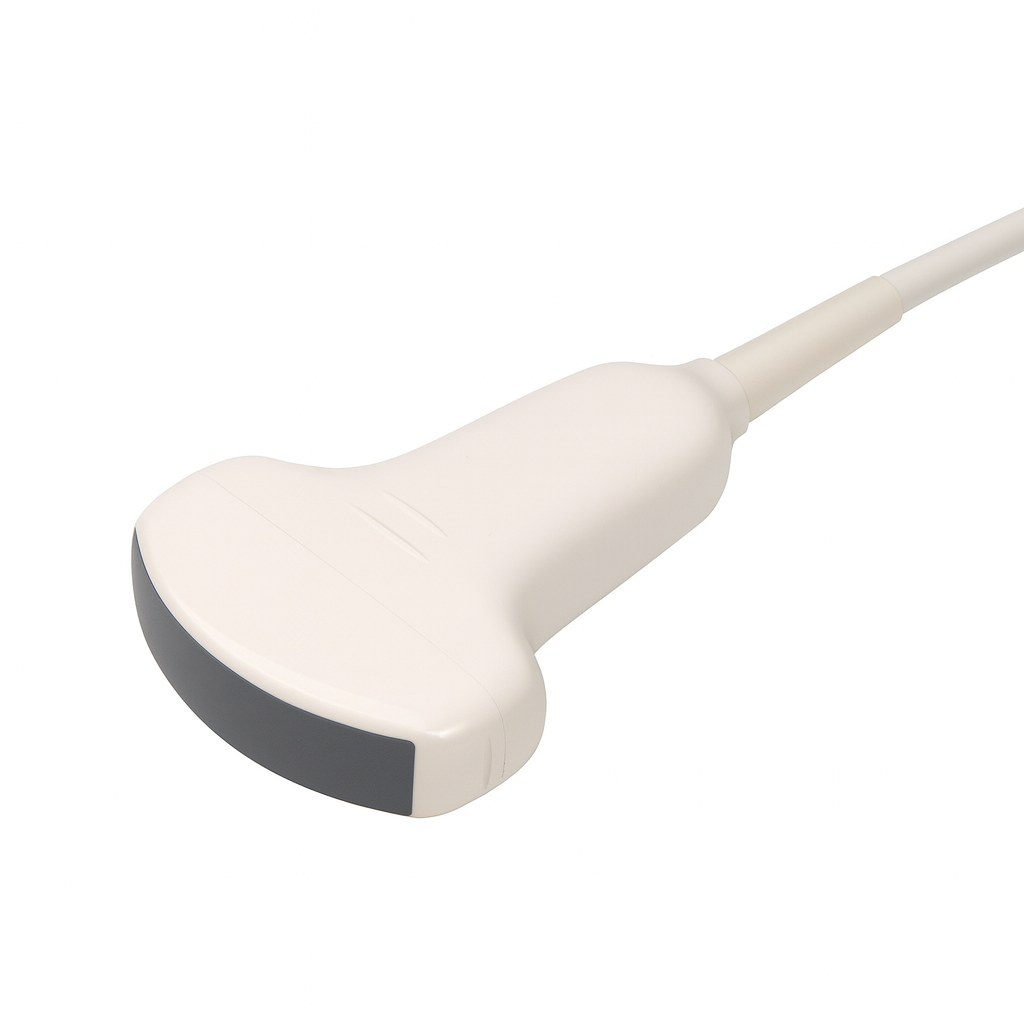

Convex transducer - Single Crystal
Convex transducer - Single Crystal
S1-8CM -192 Element
- • Single Crystal Technology
- • Transducer Elements: 192
- • Convex radius: 60mm
- • Physical footprint: 78mm × 27mm
- • Application: abdomen, ob/gyn, urology, pediatric
- • Reusable biopsy guide available

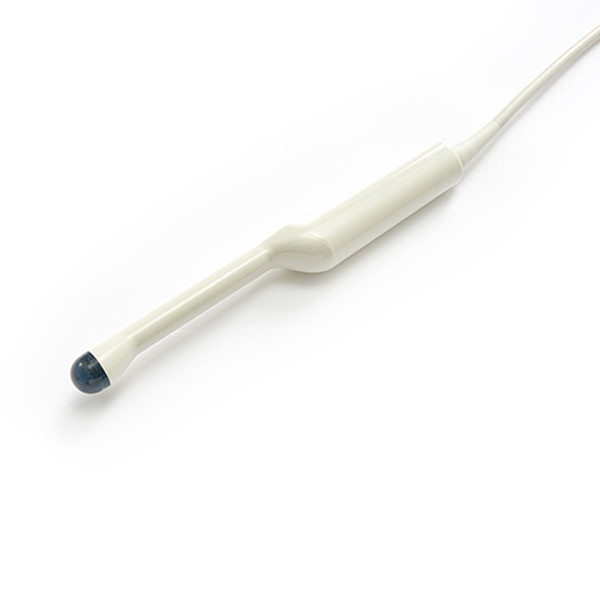

Endocavity Probe 4D
Endocavity Probe 4D
D4-9E - 148 Element
- • Convex radius: 10mm
- • Physical footprint: 32.5mm × 39.5mm
- • Application: ob/gyn, urology

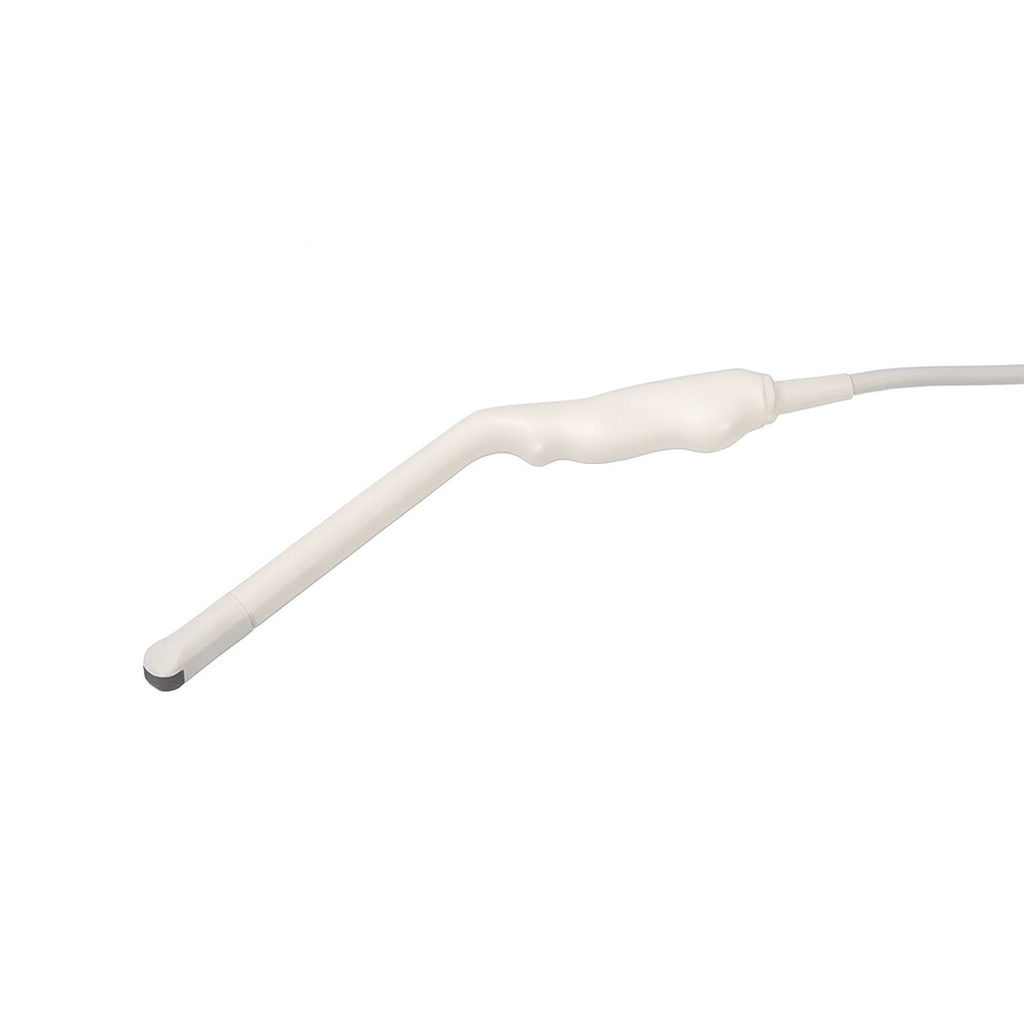

Endocavity Transducer - Crank Handle - 192 Elements
Endocavity Transducer - Crank Handle - 192 Elements
X4-9E - Crank Handle - 192 Element
- • Field of View: 180°
- • Convex Radius: 8.8 mm
- • Application: OB/GYN, Urology
- • Center Frequency: 3.2 MHz
- • B-mode Frequency Range: 5.0–11 MHz
- • Physical Footprint: 19.15 mm (lens) × 17.8 mm (lens)
Micro-Convex Probe
Micro-Convex Probe
- G3-9M
- • Application: abdomen, ob/gyn, urology
- • Transducer elements: 128
- • Field of view: 100°
- • Convex radius: 15mm
- • Center frequency: 6.5 MHz
- • B-mode Frequency range: 3 – 11 MHz
- • Physical footprint: 35mm × 31mm
Cardiac Probe - Paediatric
Cardiac Probe - Paediatric
G3-10P
- • Application: Paediatric cardiology, abdomen,
- • Aperture size: 10.24 mm
- • Field of view: 90 degree
- • Center frequency: 4.7MHz
- • B-mode Frequency range: 3.0-10.0Mhz
- • Physical footprint: 33mm×33mm
Cardiac Probe - Phased Array
Cardiac Probe - Phased Array
G1-4P - 64 Element
- • Application: cardiac, abdomen,
- • Aperture size: 17.92mm
- • Field of view: 90 degree
- • Center frequency: 2.5MHz
- • B-mode Frequency range: 2.0-5.0Mhz
- • Physical footprint: 34.5mm×28.5mm
Convex Probe - 3D/4D Volume
Convex Probe - 3D/4D Volume
D3-6C
- • Field of view: 70 degree
- • Convex radius: 40mm
- • Application: abdomen, ob/gyn, urology
- • Center frequency: 4.0 MHz
- • B-mode Frequency range: 3.0 – 6.0MHz
- • Physical footprint: 82mm×53Mm
Linear Probe - Breast
Linear Probe - Breast
U5-15LE - 256 Element
- • Fine pitch, high resolution
- • Applications: small parts, specially for breast, vascular
- • Aperture size: 51.2mm
- • Center frequency: 7.3MHz
- • B-mode Frequency range: 6.0-14.0Mhz
- • Physical footprint: 65.5mm×25.5mm
Linear Probe - Wideband - 192 Elements
Linear Probe - Wideband - 192 Elements
X4-12L - 192 Element
- • Fine pitch, high resolution
- • Applications: vascular, small parts, msk, nerve
- • Aperture size: 38.4mm
- • Center frequency: 7.8MHz
- • B-mode Frequency range: 6.0-16MHz
- • Physical footprint: 50.5mm×17mm
Linear Probe - High Frequency
Linear Probe - High Frequency
X6-16L - 192 Element
- • Fine pitch, high resolution
- • Application: vascular, small parts, msk, nerve
- • Aperture size: 38.4mm
- • Center frequency: 10.5MHz
- • B-mode Frequency range: 7.3 -18.0MHz
- • Physical footprint: 50.5mm×20mm
Convex Probe 192 Elements
Convex Probe 192 Elements
X2-6C - 192 Element
- • Field of view: 62 degree
- • Convex radius: 60mm
- • Application: abdomen, ob/gyn, urology, pediatric
- • Center frequency: 3.5MHz
- • B-mode Frequency range: 2.0-5.5MHz
- • Physical footprint: 78mm × 28mm
- •Reusable biopsy guide available
Compatible optional accessories
Black and white thermal ultrasound printer
Black and white thermal ultrasound printer
Sony UP-X898MD – A compact A6 black-and-white ultrasound printer delivering fast, high-resolution images with USB storage. Each roll yields about 250 prints on average. Compatible paper options include High-Density, High-Gloss, and Standard thermal media.

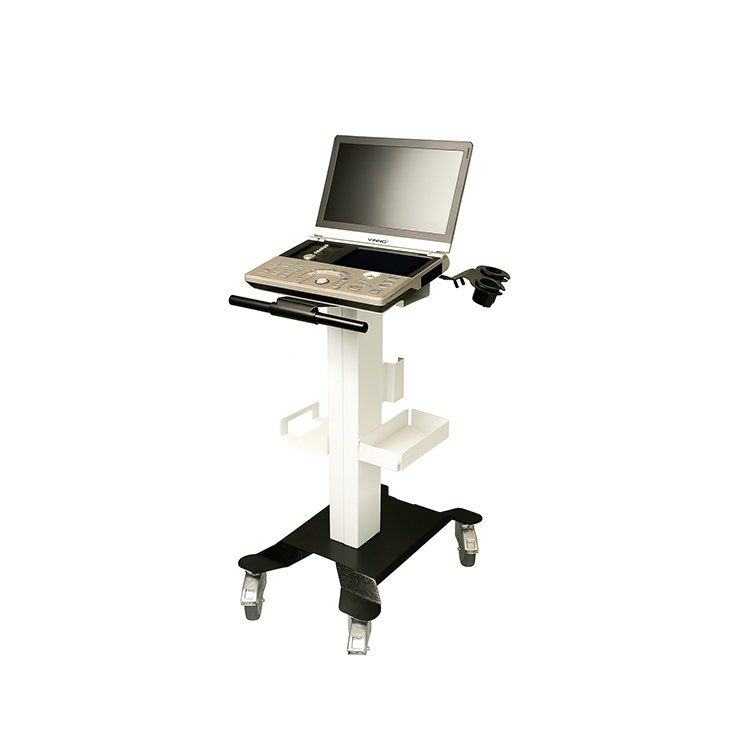

Locally Manufactured "made to fit" cart / trolley
Locally Manufactured "made to fit" cart / trolley
Locally crafted cart, this sturdy, wheeled cart features a gel holder, three transducer cradles, and spacious shelves for a printer and consumables, ensuring organized, mobile ultrasound workflow.
Reusable stainless Biopsy guide
Reusable stainless Biopsy guide
A variety of reusable brackets for linear, convex, and endocavity probes, supporting in-plane and out-of-plane approaches with optional adjustable-angle guides for precise, stable ultrasound-guided procedures.
Hard wheelie case with fitted foam inserts
Hard wheelie case with fitted foam inserts
Magic cut
Magic cut
Magic Cut is VINNO’s 3D/4D ultrasound feature that lets clinicians instantly remove overlying tissue from a volume-rendered image. By “cutting away” unwanted areas, it highlights the target anatomy—such as a fetal face—for clearer, more focused visualizat
HQ (High Quality) 3D/4D
HQ (High Quality) 3D/4D
VINNO HQ 4D is a high-quality volume rendering engine built into VINNO’s 4D ultrasound systems. It delivers smooth, translucent volume images with enhanced internal and external detail, improving depth perception and diagnostic clarity.
Bluetooth adapter
Bluetooth adapter
VINNO Bluetooth Adapter – This optional dongle lets VINNO systems wirelessly transmit images to paired devices via Bluetooth. Once plugged in and paired, users can send one or more images directly to mobile devices or other Bluetooth systems
Needle enhancement
Needle enhancement
Needle Enhancement is an advanced ultrasound software feature that improves the visibility of needles during interventional procedures. By intelligently processing the acoustic beam and steering it in optimal angles, the technology sharply delineates the
Wireless adapter (Excludes WiFi connection)
Wireless adapter (Excludes WiFi connection)
Wireless Adapter & Email Transfer – The optional wireless adapter enables VINNO devices to connect via Wi-Fi, allowing clinicians to email both images and reports directly from the system for fast, cable-free sharing and streamlined documentation.
Basic Vinno Cart / Trolley
Basic Vinno Cart / Trolley
Basic Vinno Cart / Trolley for the D5 Vet
